Description

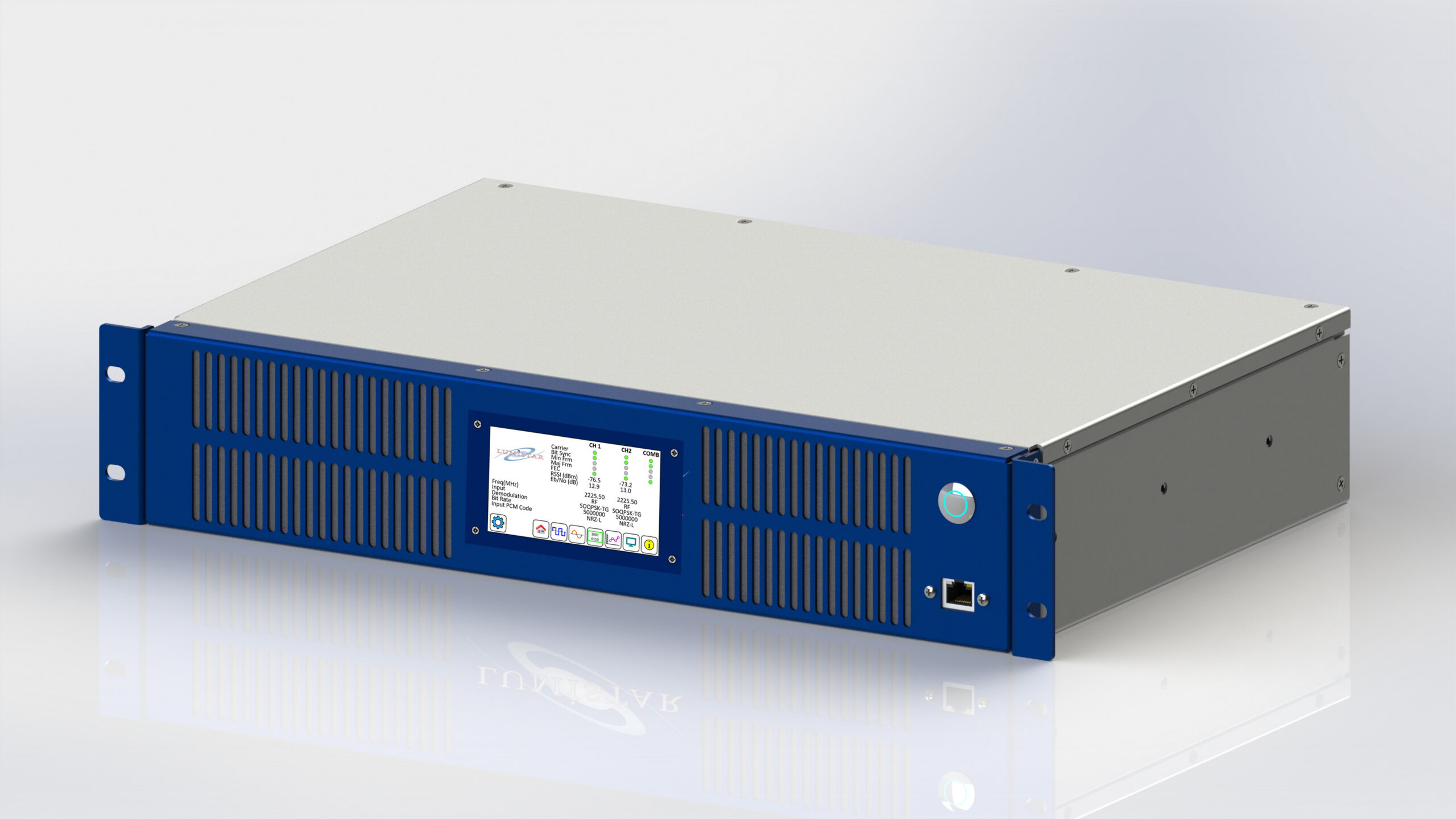

The Lumistar LS-28-DRSM-R2D Dual-Channel TM Receiver/Combiner with Data Recording, TMoIP and TM Processing system offers a rack-mount high-performance competitively priced multi-band multi-mode COTS solution Ethernet Appliance for modern Telemetry Ground Receiving System applications. The unit also functions as an independent data & antenna tracking receiver in one enclosure, with data recording, Ethernet data streaming and TM processing options. A complete ground station. The system also provides front panel touch screen control for basic receiver functions.
Features
- Internal IF Modulator: Built-In 70 MHz Digital IF Modulator for loop-back self-test of the receiver or external use. Power output from 0 to -80 dBm. Modulation formats include PCM/FM, PCM/PM. BPSK, QPSK, OQPSK, SQPSK, SOQPSK, AUQPSK, AQPSK, and Multi-h CPM, similar to as listed above. The modulator includes a precision calibrated noise feature, output code selection (NRZ-L/M/S, Bi-Phase L/M/S, DMM/S, and RNRZ15), external modulation input, internal PRN pattern generation, adjustable FM deviation, and LDPC encoding. Lumistar can provide a separate LS-76-M2 “70 MHz to RF upconverter” to support RF bands.
- Multi-symbol PCM/FM: Improves BER performance by approx. > 2.5 dB vs. standard analog PCM/FM
- Constellation Displays: for all PSK formats
- Eye Pattern Displays: for all formats
- Bit Error Rate TX/RX: Six BER Receivers (CH1/CH2/Combined, I and Q for each stream), two PRN Clock/Data Generators (I and Q) with PRN, User Defined patterns available.
- IF Spectrum Displays: Displays 70 MHz IF Spectrum, has typical spectrum analyzer controls and capabilities (such as Span. Averaging, Ref Level, Max Hold, Clear/Write, Averaging, etc…). All displays can be captured via “Screen-Shot” hardcopy feature, available in JPG file format.
- IRIG Pre-D Supports IRIG Pre-D Recording and Playback (Optional)
