Description

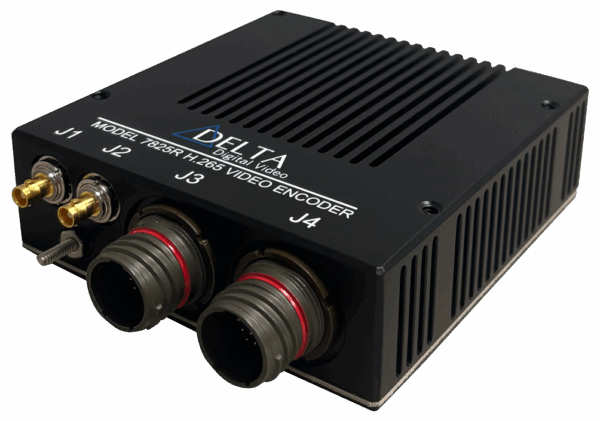

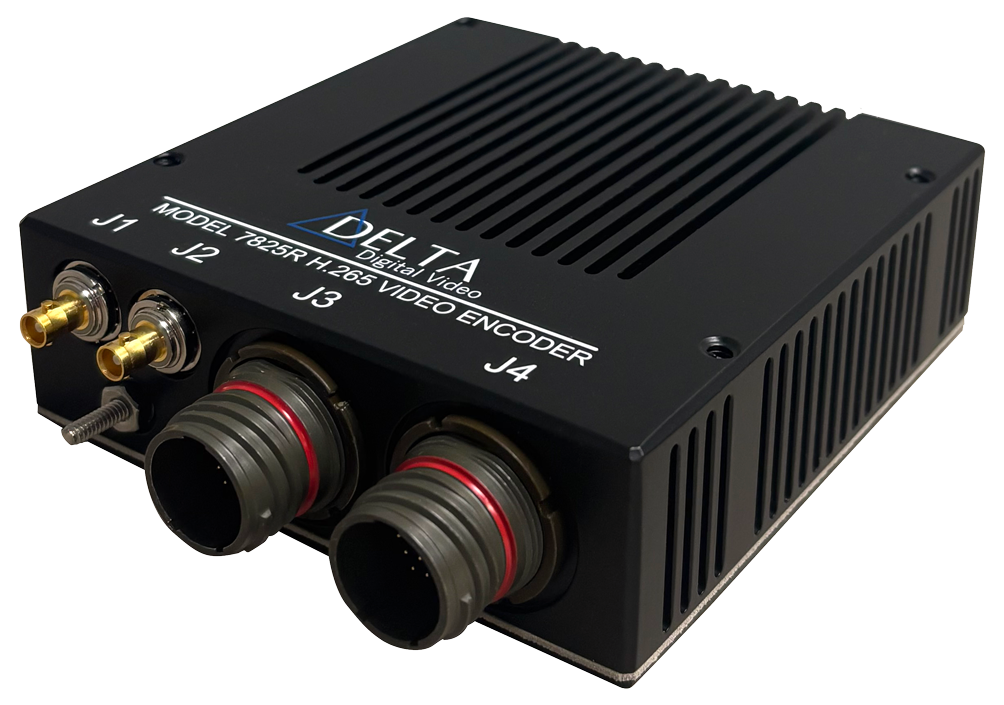

Delta’s Model 7825R H.265 Video Encoder provides for the transmission of two full-motion video signals for ISR applications. Designed for operation in harsh environments, the 7825R is a rugged, compact unit with all the features of Delta’s MISB/JITC certified video encoder products. These include, standards-compliant video compression, KLV metadata processing, and transport stream multiplexing.
Features
- Real-time, high-quality, lowlatency encoding of full motion video for real-time applications
- Standards-based, H.264 and H.265 algorithms
- Optional Ultra low-latency JPEG-XS
- Resolutions up to 4Kp
- Supports UHD/HD/SD-SDI and Composite (NTSC/PAL) Formats
- Transmit compressed video at rates from 64Kbps to 25Mbps/ Channel
- RTSP/RTP/UDP, TS/UDP, SRT Protocols
- MISB/STANAG-Compliant
- Fully configurable network interface
- AES Encryption
- Stereo/dual-channel audio inputs
- MPEG-1 Layer II Audio Compression
- GPS/PTP/NTP Time Sync
- Metadata Support: VANC, Serial, and Ethernet
- Serial or Ethernet port configurable
- Compact, rugged MIL packaging
