Description

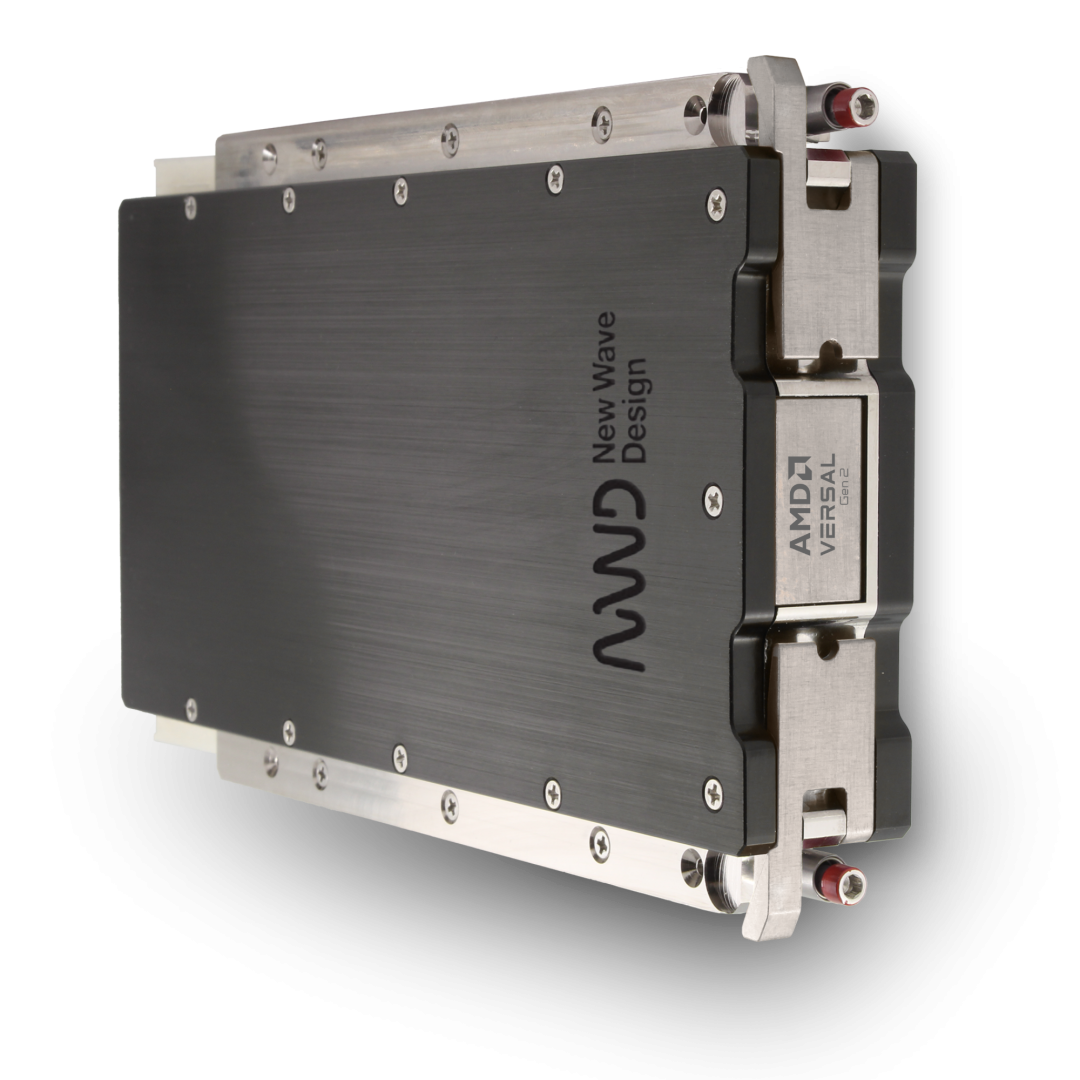

The V6074 is a next generation heterogeneous embedded computing 3U VPX module featuring the AMD Versal™ AI Edge Gen2 Adaptive System-on-Chip (SoC), 2 x single-width QMC slots, electrical high-speed I/O, and available in SOSA-aligned 14.2.16 profile. The V6074 allows footprint compatible part selection of Versal™ 2VE3858 or 2VM3858 devices. In a single 3U VPX module, the V6074 provides 1xPCIe Gen4x4 QMC1 channels, 1 x PCIe Gen4x4 QMC2 channel, Video Codec Unit, 4-core GPU, 8 Arm® Cortex® A78AE application processor, 10 Arm® Cortex® R52 real time processors, 144 AI engine tiles, 2064 DSP engines, and a 543K LUT FPGA fabric.
Features
• Rugged iTemp 3U VPX 1-inch pitch module.
• AMD Versal™ Adaptive SoC (FPGA): 2VE3858 or 2VM3858 options.
• 2 x Single-width VITA 93 QMC sites with mapping to the backplane
• Full 14.2.16 profile backplane IO support
• 60GB (5x DDRMC, 12GB, 32-bit) up to 3750 MHz / 7500 Mbps LPDDR5X SDRAM
• Embedded IPMC per VITA 46.11
• CC4 @ up to 120W.
• Thermal sensors for monitoring card temperature.
• Robust FPGA (PL) and BSP (PS) example design.
