Rugged 200 MHz Real-Time Data Recording and Playback Rackmount Instrument

Product Documents

In stock

SKU: RTR 2746 Category:

Description

The Pentek RTR 2746 is a turnkey, multiband record and playback instrument thatis built to operate under harsh conditions. Designed to withstand high vibration and operating temperatures, the RTR 2746 is intended for military, airborne and UAV applications requiring a rugged instrument. With scalable A/Ds, D/As and SSD (solidstate drive) storage, the RTR 2746 can be customized to stream data to and from disk at rates as high as 1600 MB/sec.

Features
• Complete multiband recording and playback instrument

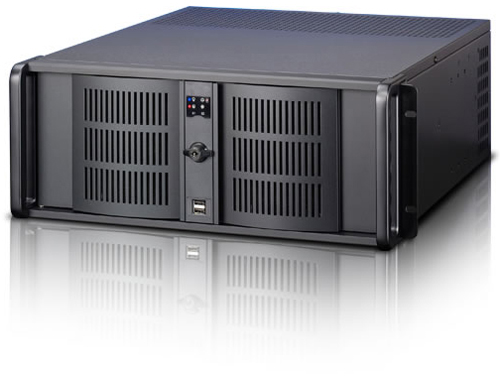

• 4U 19 inch rugged rackmount PC server chassis
• Designed to MIL-STD-810F
• Windows® 7 Professional workstation with high performance Intel® XeonTM processor
• 200 MHz max. 16-bit A/D sampling for recording, 0 to 8 channels
• 1.25 GHz max. 16-bit D/A sampling for playback, 0 to 8 channels
• 80 MHz max. record and playback signal bandwidths
• Capable of record/playback of IF frequencies to 700 MHz
• Real-time sustained recording rates of up to 1600 MBytes/sec in 4-channel configuration
• Removable SSD drives
• Up to 24 terabytes of storage to NTFS RAID disk array
• RAID levels of 0 ,1, 5 , 6, 10 and 50
• SystemFlow® GUI with signal viewer analysis tool which includes a virtual oscilloscope and spectrum analyzer
• C-callable API for integration of recorder into application
• File headers include time stamping and recording parameters
• DDC decimation and DUC interpolation range from 2 to 65,536
• Optional GPS time and position stamping
