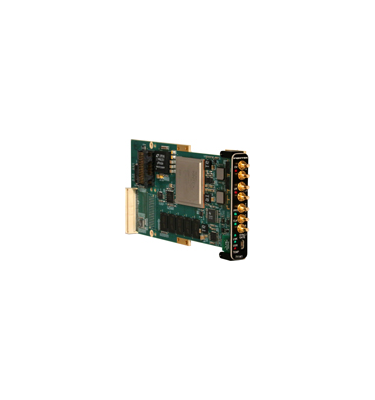

1-Ch. 6.4 GHz or 2-Ch. 3.2 GHz A/D, 2-Ch. 6.4 GHz D/A, Kintex UltraScale FPGA – XMC

Product Documents

In stock

SKU: Model 71141 Category:

Model 71141 is a member of the Jade family of high-performance XMC modules. The Jade architecture embodies a new streamlined approach to FPGA-based boards, simplifying the design to reduce power and cost, while still providing some of the highest-performance FPGA resources available today. Designed to work with Pentek’s new Navigator Design Suite of tools, the combination of Jade and Navigator offers users an efficient path to developing and deploying FPGA-based data acquisition and processing.

Features

  • Ideal radar and software radio interface solution
  • Supports Xilinx Kintex UltraScale FPGAs
  • One-channel mode with 6.4 GHz, 12-bit A/D
  • Two-channel mode with 3.2 GHz, 12-bit A/Ds
  • Programmable DDCs (Digital Downconverters)
  • Two 6.4 GHz, 14-bit D/As
  • Programmable DUCs (Digital Upconverters)
  • 5 GB of DDR4 SDRAM
  • μSync clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • VITA 42.0 XMC compatible with switched fabric interfaces
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O
  • Ruggedized and conduction cooled versions available
